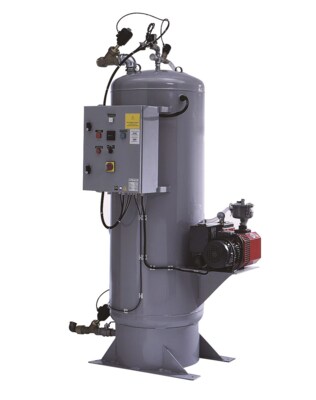

Autovac 500 Waste Oil Suction unit

Autovac is an eco-friendly waste oil evacuation method. It employs a fixed setup with a hose reel and probe or quick coupler to extract waste oil directly from the engine into a storage tank. It eliminates direct contact with waste oil and the need for mobile units. The system ensures clean and safe suction with its automatic High Vacuum system, preventing spillage. Installation is simple. Caution: Do not use with flammable or corrosive fluids. Key features include automatic drainage of the built-in tank, accommodating up to 7 workstations simultaneously, and a vacuum switch controlling the pump's operation as needed.

Technical data

Part No

317-54

Capacity

750 W

Maximum air pressure

0,6 (6,0) MPa (bar)

Voltage

380 V AC

Vacuum level

99 %

Tank volyme

500 l

Noise level

62 dB

Packaging LxWxH

1,37 x 1,280 x 2,2 m

Weight (Gross)

216 kg

H.S. Code

84141089
