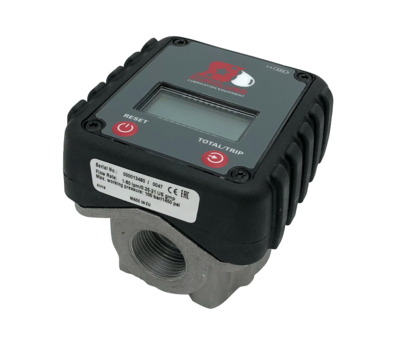

Digital high flow inline meter G3/4"(f)

For measuring and dispensing oil, diesel or similar fluids. To be installed in piped system etc

Technical data

Part No

1168820

Capacity

80 l/min free flow

Maximum pressure

7 (70) MPa (bar)

Maximum temperature

-5 - +50 °C

Voltage

2x AAA 1,5 V DC

Accuracy

0,5 % ±

Connection

3/4" (F)-(F) BSP

Packaging LxWxH

0,14 x 0,11 x 0,12 m

Weight (Gross)

0,88 kg

H.S. Code

90282000

Downloads

• 10372_1168817_manual.pdf
