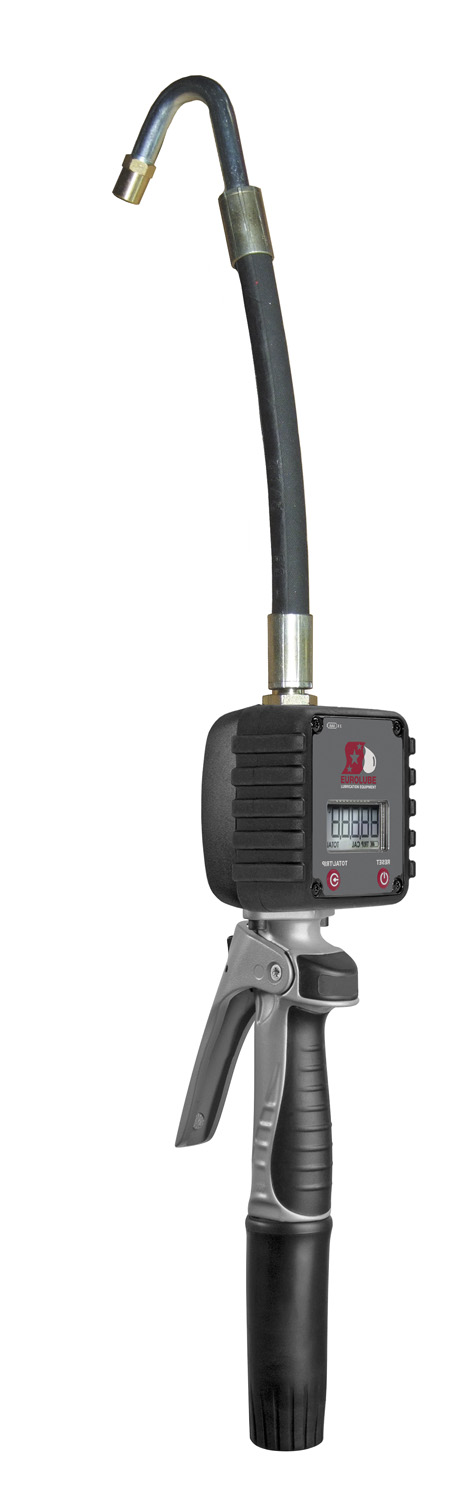

Digital hand meter 135° hose automatic non-drip

Our rugged and easy-to-operate hose end meters are designed specifically to measure and dispense oil and similar fluids. For maintenance and service within the automotive, industrial, marine, farming, aircraft and mining sectors. For all lubricants up to SAE 140 and glycol. Includes: inlet swivel
For maintenance and service within the automotive, industrial, marine, farming, aircraft and mining sectors. For all lubricants up to SAE 140 and Glycol. Max pr.: 7 MPa (1000 psi), Max flow: 15 l/min, Includes: 1/2” inlet swivel
135° flexible outlet with automatic non-drip nozzle

Technical data

Part No

10391

Capacity

30 l/min free flow

Maximum working pressure

10,0 (100) MPa (bar)

Accuracy

0,5 % ±

Connection

1/2" (F) BSP

Packaging LxWxH

0,400 x 0,200 x 0,120 m

Weight (Gross)

1,66 kg

H.S. Code

90282000

Downloads

• 10372_1168817_manual.pdf
