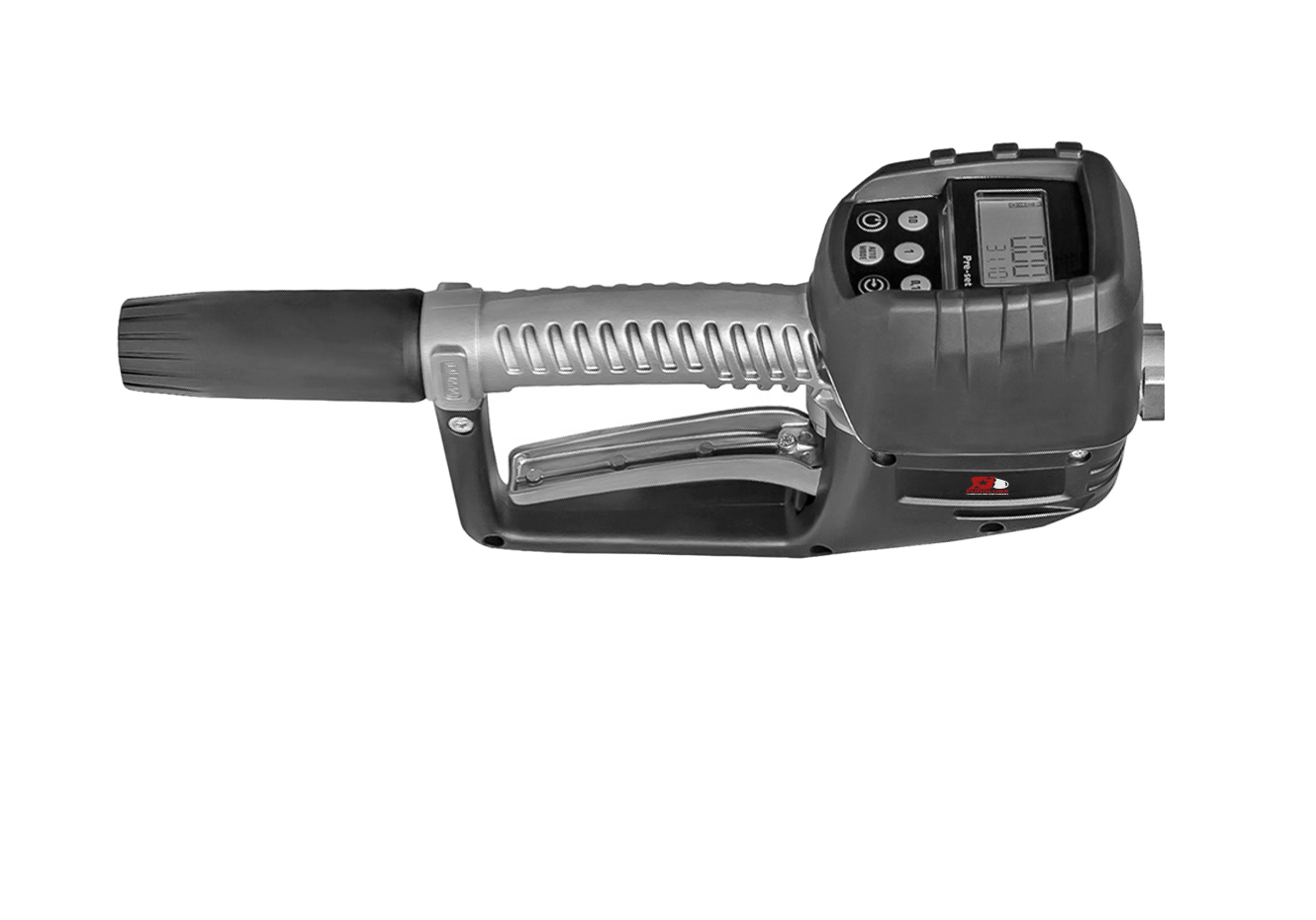

Preset digital hand meter without outlet hose

Currently out of stock Estimated delivery time is 6 week(s)

Digital meter with automatic function, the volume to be dispensed can be selected and the meter will shut off automatically. Microprocessor controlled, ergonomically designed with swivel, inlet filter and battery. The trigger can be locked in the open position and then closed with a slight tap on the locking button. Features:• Preset • Up to 10 pre-programmed volumes • Transaction memory 5 last tapping • Zero trip meter • Non-zeroable total counter • Battery indicator • Measuring units Liter, US Gallons, Quarts and Pints

Technical data

Part No
10400
Media
Oil/Glycol
Capacity
0,8-30 l/min free flow
Maximum working pressure
10,0 (100) MPa (bar)
Pre-set
0,1 - 999,9 l
Connection
1/2" (F) BSP
H.S. Code
90261021
