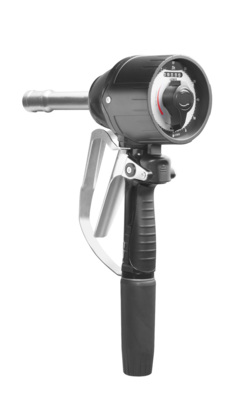

Pre-set mechanical meter for oil 1/2" (F) BSP

Our rugged and easy-to-operate hose end meters are designed specifically to measure and dispense oil and similar fluids. For maintenance and service within the automotive, industrial, marine, farming, aircraft and mining sectors. For automatic operation set the dial pointer to the quantity needed, actuate the trigger for automatic latching and the valve will deliver the volume required and then shut off. For all lubricants up to SAE 140 and glycol. Includes: inlet swivel, rigid outlet with manual non-drip nozzle

Technical data

Part No

16716

Capacity

20 l/min free flow

Maximum working pressure

7,0 (70) MPa (bar)

Accuracy

0,65 % ±

Pre-set

0,25 - 60 l

Connection

1/2" (F) BSP

Packaging LxWxH

0,25 x 0,40 x 0,12 m

Weight (Gross)

2,3 kg

H.S. Code

90282000
