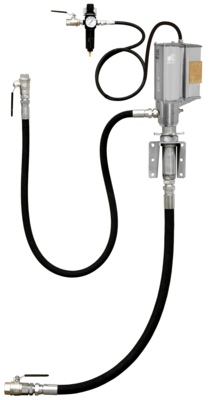

E80 5:1 Pump kit for piped assembly

For dispensing lubricating oils and similar products up to SAE 140 in piped systems. Recommended if more than 3 outlets are in use simultaneously. Quiet and double acting operation and easy to fit to drum or tank. Includes: wall bracket, 1/4” filter regulator, 1,5m air line hose, 2 pcs hoses for oil, 3 pcs ball valves

Technical data

Part No

157-03

Maximum air pressure

1,0 (10) MPa (bar)

Pump

15831

Seals

NBR/PU

Packaging LxWxH

0,765 x 0,44 x 0,26 m

Weight (Gross)

11,94 kg

H.S. Code

84135069

Downloads

• 157-03_broschyr.pdf
