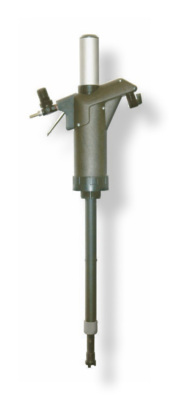

AF1 Transfer pump for drum

Easy to use air operated pump for transfer of light oils and diesel. Quiet operation and easy to fit to drum, 2” adapter included, Outlet: Ball valve. Pump tube: Telescopic.

Technical data

Part No

1050-100

Ratio

1:1 mm

Capacity

15 l/min free flow

Air connection

6,35 (1/4") Ø mm (inch)

Maximum air pressure

0,7 (7,0) MPa (bar)

Pump tube

400 - 915 mm

Seals

NBR

Packaging LxWxH

0,53 x 0,34 x 0,11 m

Weight (Gross)

2 kg

H.S. Code

84135069

Downloads

• 1050-ser_manual.pdf
