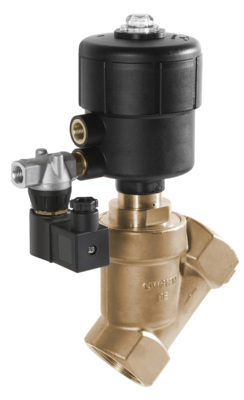

Electro-pneumatic valve for waste oil

Electrically controlled and actuated by compressed air. To prevent overfilling waste oil tanks. Normally open (NO). Connects to U-tank (23829).

Technical data

Part No

1168985

Media

Waste oil

Air connection

1/4" (F) BSP

Maximum air pressure

max 0,1-0,4 (1-4) MPa (bar)

Maximum working pressure

1 (10) MPa (bar)

Voltage

24 V DC

Material

Brass

Connection

1 1/2" (F) BSP

H.S. Code

84812010
