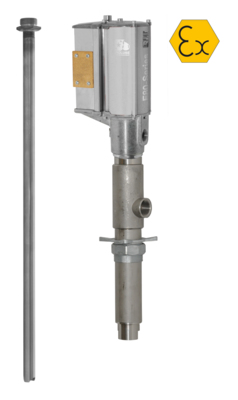

Stainless steel pump with suction tube 4:1 30 l/min free flow ATEX

Our stainless steel pumps are designed to dispense aggressive fluids, compatible with AISI 316, and PTFE. Example of fluids: Solvents, alcohols, detergents, sealants, inks, paint, glue, e.g. ATEX approved.

Technical data

Part No

12746

Ratio

4:1

Capacity

30 l/min free flow

Air connection

1/4" (F) BSP

Maximum air pressure

1,0 (10) MPa (bar)

Inlet

1" (F) BSP

Outlet

1" (F) BSP

Pump tube

Ø25, 54 L=670+220 mm

Seals

PTFE / Teflon®

Classification

ATEX

Packaging LxWxH

0,76 x 0,16 x 0,11 m

Weight (Gross)

9,9 kg

H.S. Code

84135069

Downloads

• 12740-45_EN_SE.pdf
