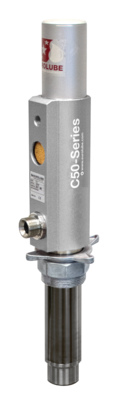

Pump 1:1 stub stainless steel Viton, PTFE

Our stainless steel pumps are designed to dispense aggressive fluids, compatible with AISI 316, and PTFE.
Example of fluids: Solvents, alcohols, detergents, sealants, inks, paint, glue, e.g. Do not use with flammable fluids.

Technical data

Part No

11716

Ratio

1:1

Capacity

30 l/min free flow

Air connection

1/4" (F) BSP

Maximum air pressure

1 (10) MPa (bar)

Inlet

1" (F) BSP

Outlet

3/4" (M) BSP

Pump tube

Ø50 L=235 mm

Seals

Viton, PTFE

Packaging LxWxH

0,57 x 0,11 x 0,1 m

Weight (Gross)

4,75 kg

H.S. Code

84135069

Downloads

• 11716-17_manual.pdf
