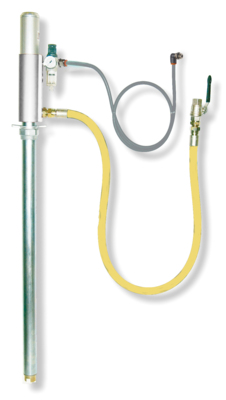

Pump 1:1 stainless chemical drum & pipe assembly

Stainless steel pump for dispensing aggressive fluids compatible with AISI 316, and PTFE. Example of fluids: Solvents, alcohols, detergents, sealants, inks, paint, glue, e.g. Do not use with flammable fluids. Includes: 1/4” Filter regulator, 1,5m Air line hose, 1,5m Outlet hose, 3/4” Ball valve.

Technical data

Part No

117-10

Maximum air pressure

1 (10) MPa (bar)

Pump

11717

Packaging LxWxH

1,36 x 0,23 x 0,13 m

Weight (Gross)

13,2 kg

H.S. Code

84135069

Downloads

• 117-10.pdf
