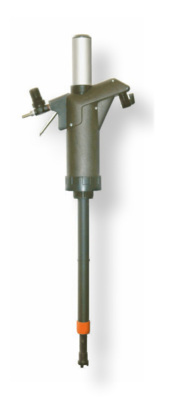

AF1 Transfer pump Viton

AF1 is ideal to transfer a wide range of fluids compatible PP and Viton. Do not use with flammable fluids.

Technical data

Part No

1050-200

Ratio

1:1

Capacity

15 l/min free flow

Air connection

6,35 (1/4") Ø mm (inch)

Maximum air pressure

0,7 (7) MPa (bar)

Riser tube length

400-915 mm

Seals

Viton

Packaging LxWxH

0,53 x 0,34 x 0,12 m

Weight (Gross)

2,3 kg

H.S. Code

84135069

Downloads

• 1050-ser_manual.pdf
