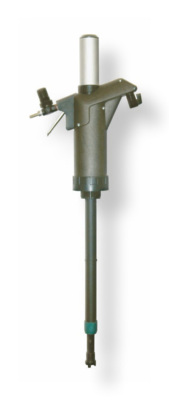

AF1 Transfer pump EPDM

Order item Estimated delivery time is 4 week(s)

AF1 is ideal to transfer a wide range of fluids compatible PP and EPDM. Do not use with flammable fluids.

Send inquiry

Technical data

Part No
1050-300
Ratio
1:1
Capacity
15 l/min free flow
Air connection
1/4" (F) BSP
Maximum air pressure
0,7 (7) MPa (bar)
Riser tube length
400-915 mm
Seals
EPDM
Packaging LxWxH
0,53 x 0,34 x 0,12 m
Weight (Gross)
2,3 kg
H.S. Code
84135069
