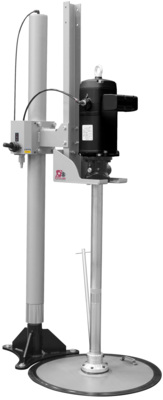

Single arm hoist with C115 - 40:1 pump

Order item Estimated delivery time is 1 week(s)

Offers better performance, easy use and safe handling.
Robust follower plate 550-590mm with rubber blade wiper to ensure positive sealing of greases. Compact and robust design. the lift can be rotated, this feature makes it possible to have 3 grease drums in position, for a quick change to a new grease drum. Robust lever valve for UP/DOWN control of the hoist.

Technical data

Part No
257-55
Maximum air pressure
1,4 (14) MPa (bar)
Pump
25745
Height
1630 - 2630 mm
Packaging LxWxH
0,92 x 0,65 x 1,65 m
Weight (Gross)
92 kg
H.S. Code
84135069
