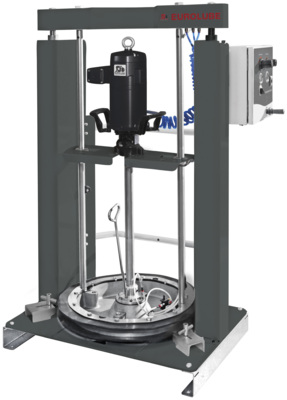

Power ram with C115 - 40:1 pump

The power Ram pump hoists offer better performance, easy use and safe handling, powered by Ø80mm twin-post pressure primers. Robust one-piece aluminium follower plate with twin rubber blade wipers to ensure positive sealing of high-viscosity greases. built in automatic low level shut of valve, that prevents dry pumping and protect the pump. pivotable air control box, with two air regulators, one for pump control and one for hoist control. ON/OFF push button for pump control. Robust lever valve for UP/DOWN control of the hoist. Includes: pump, pump hoist, quick coupling, filter regulator, air line hose, grease hose, follower plate.

Technical data

Part No

257-51

Capacity

11000 gr/min

Air connection

1/2" (F) BSP

Maximum air pressure

1,4 (14) MPa (bar)

Outlet

1/2" (F) BSP

Pump

25746

Packaging LxWxH

0,79 x 0,98 x 1,62 m

Weight (Gross)

203 kg

H.S. Code

84135069

Downloads

• 257-51_broschyr.pdf
