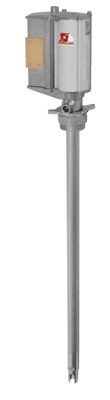

E80 - 80:1 Grease pump for 50kg drum

The heart of any grease system is the pump. Eurolube pumps are renowned worldwide for their high quality, easy to use and hassle-free operation. Unique air motor design, deliver Grease up to NLGI3.

Technical data

Part No

25796

Ratio

80:1

Capacity

1100 gr/min

Air connection

1/4" (F) BSPT

Maximum air pressure

1,0 (10) MPa (bar)

Outlet

3/8" (F) BSPT

Pump tube

30 (760) Ø (length) mm

Seals

PU / NBR

Packaging LxWxH

1,2 x 0,16 x 0,1 m

Weight (Gross)

7 kg

H.S. Code

84135069

Downloads

• 25794_-95_-96_manual.pdf
• Broschyr_E80_Series_SE.pdf
• Broschyr_E80_Series_EN.pdf
