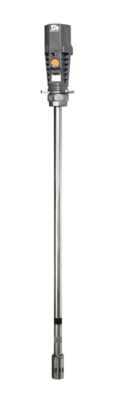

C70 - 55:1 Grease pump for 180kg drum

The heart of any grease system is the pump. Eurolube pumps are renowned worldwide for their high quality, easy to use and hassle-free operation. Unique air motor design, lubricator & filter NOT required. Dispense grease up to NLGI3

Technical data

Part No

25765

Ratio

55:1

Capacity

540 gr/min

Air connection

1/4" (F) BSPT

Maximum air pressure

1,0 (10) MPa (bar)

Outlet

1/4" (F) BSPT

Pump tube

26 (920) Ø (length) mm

Seals

NBR / PTFE

Packaging LxWxH

1,33 x 0,12 x 0,11 m

Weight (Gross)

6 kg

H.S. Code

84135069

Downloads

• 25765-66-67_EN_SE_1b.pdf
