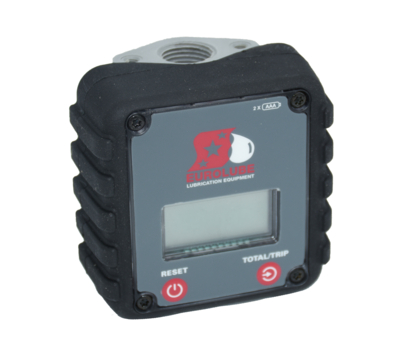

Digital inline meter fluids G1/2"(f) PVC

Our multi-fluid meter is designed to handle a wide range of fluids. Example of fluids: Antifreeze, solvents, windscreen fluids, detergents, water e.g. Do not use with flammable fluids.

Technical data

Part No

1168819

Capacity

1-50 l/min free flow

Maximum pressure

3 (30) MPa (bar)

Voltage

2x AAA 1,5 V DC

Material

PVC

Connection

1/2" (F)-(F) BSP

Packaging LxWxH

0,13 x 0,09 x 0,09 m

Weight (Gross)

0,55 kg

H.S. Code

90261021

Downloads

• 10372_1168817_manual.pdf
