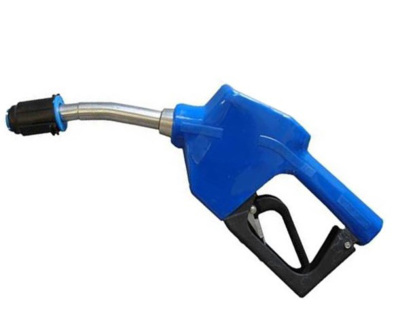

AdBlue® Magnetic Nozzle Automatic

AdBlue® nozzle with automatic shut-off when the tank is full. Comfortable rubber encased aluminium housing for comfortable grip at low temperature. The lever protection prevents accidental dispensing. With magnetic mis-filling device. The valve will not open unless a magnetic ring is installed in the container. One spare magnetic ring is included.

Technical data

Part No

3369178

Capacity

45 l/min free flow

Outlet

Ø19 mm

Maximum pressure

0,5 (5) MPa (bar)

Connection

19 (3/4") Ø mm (inch)

Packaging LxWxH

0,44 x 0,17 x 0,06 m

Weight (Gross)

2 kg

H.S. Code

84248970
